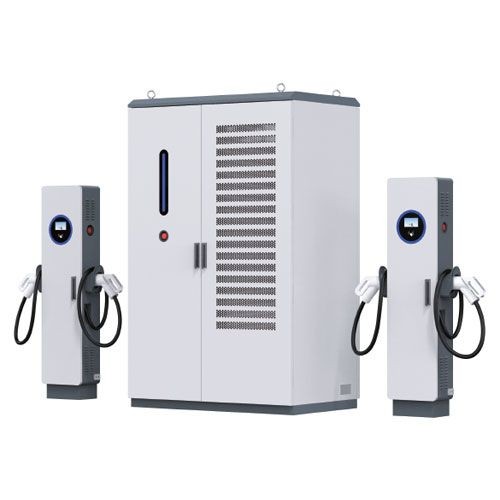

Gridisyslink 240-960KW ultra fast ev charging station manufacturer for logistics vehicles,private cars,heavy-duty trucks,engineering vehicles from china

Vehicles Served:logistics vehicles,private cars,heavy -duty trucks,engineering vehicles.

Highlights :
Ultra-High Power Output, Compatible with Multiple Vehicle Types;
Split-Type Design for Flexible Expansion;
Intelligent Dynamic Power Allocation;
Efficient Cooling & Stable Operation;
Full-Scenario Compatibility & Future-Proof Upgradability;
Digital Management & Remote O&M;
High Safety & User-Friendly Design;

Product Description:

EV Charger Type	DC
Charger Capacity	240-960KW
AC Supply System	3-Phases,5 Wire AC system
Nominal Input Voltage	AC380V±15%
Input Frequency	45-65Hz
Ambient Temperature Range	-25 to 55°C
Ambient Humidity	5 to 95%
IP Ratings	IP 54
Cooling	Air-cooled
Number of Outputs	4-14
Type of Each Output	DC200-1000V
Single Output Max. Current	200/250 Amp
Display & Screen Size	4.3 Inches Screen
User Authentication	QR Code
Liquid Cooling Current	600A(CCS1&CCS2&GBT)
Communication between EVSE and Central Server	OCPP 1.6J Protocol (Optional)
Interface between Charger and CMS	Ethernet/3G/4G/WIFI (Optional)
Executive Standard	IEC 62196 2017, IEC 61851 2017, SAE J1772, GB/T 20234
