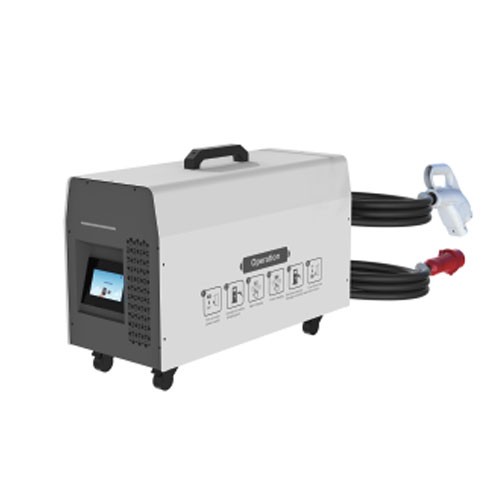

Gridisyslink 3 phases AC380V 20KW-30KW portable dc fast charger for ev manufacturer From China

Gridisyslink 3 phases AC380V 20KW-30KW portable dc fast charger for ev manufacturer From China

Delicate appearance, simple operation, convenient installation;
High efficiency, reliable and stable performance;
Friendly interaction interface, LED indicator light;
Support Plug&Play;
Overload integrated Protection;

Product Description:
EV Charger TypeDC
Charger Capacity20/30KW
MountingWall-Mounted/Column Type
AC Supply System3-Phases, 3 Wire AC system
Nominal Input VoltageAC380V±15%
InputFrequency45-65Hz
Ambient Temperature Range-25 to 55°C
Ambient Humidity5 to 95%
Storage Temperature-40 to 70°C
IP RatingsIP 54
CoolingAir-cooled
Number of Outputs1
Type of Each OutputDC200-1000V
Single Output Max. Current66/100 Amp
Display & Screen Size7 Inches Screen
User AuthenticationQR Code/Password(Optional)
Metering InformationConsumption Units
Communication between EVSE and Central ServerOCPP 1.6J Protocol (Optional)
Interface between Charger and CMSEthernet/3G/4G/WIFI (Optional)
Executive StandardIEC 62196 2017, IEC 61851 2017, SAE J1772, GB/T 20234.
